Bruce did that to all of his rebuilds. How he connected the inner and outer galleries I do not know. It was to make more room under the cowl, rather than have the oil filter sticking up so high.

The outer gallery must be pressurized for the oil pressure relief valve to work. Look for another set screw on the side where he connected the inner and outer galleries. If this is correct, you can use the stock oil pressure port. I like a block on top of the stock filter adaptor stand (removed in your case) so I can measure oil temp going into the rear stationary gear. (The inner gallery).

That also connects to the alignment dowels to supply oil to the front stationary gear. The dowels are the upper oil supply gallery for the front iron. The set screws are threaded plugs.



Lynn E. Hanover



In a message dated 6/7/2013 12:53:22 A.M. Eastern Daylight Time, instructorbill@msn.com writes:

The picture didn't come through the first time, so here it is as an attachment.

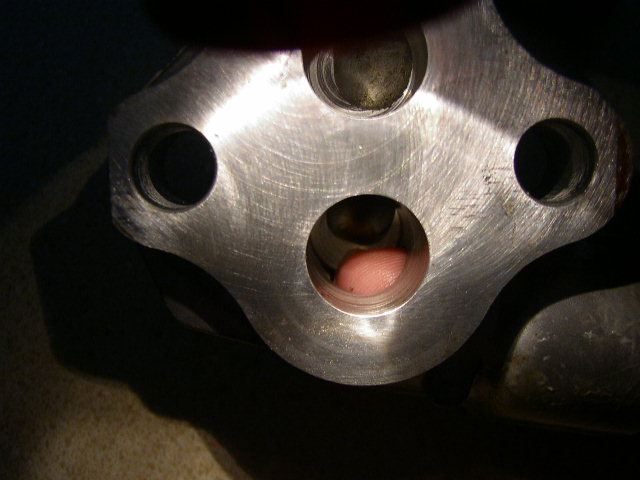

Help me identify this rear iron

--
Best Regards,
Dale_R
Cozy MKIV #497



Attachment: MazdaOFP006.jpg
