| Bob,

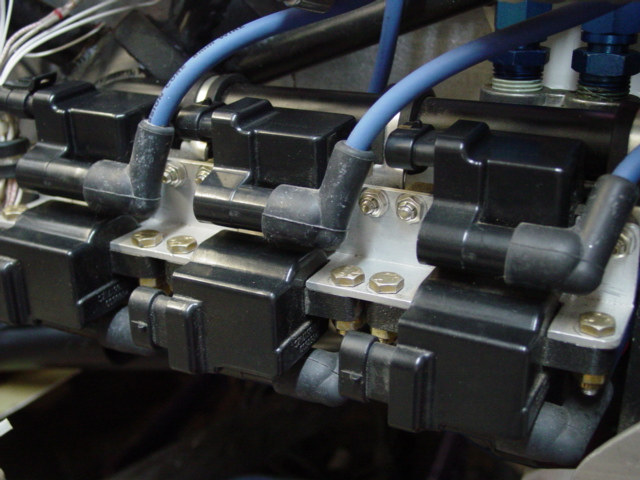

I needed to mount 6 LS1 coils for my 20B. I ended up with a very simple design that I'm still using. I took a length of 1" x 1" x 1/8" aluminum angle, a few inches longer than three coils placed end to end. Then I cut 3 notches into each of the two legs to allow the body of the LS1 coil to fit. Then I drilled holes for mounting to the angle. It is mounted directly below the plugs on the motor mount with adel clamps.
Mark On Thu, Sep 2, 2010 at 5:29 PM, Bob Perkinson <bobperk90658@bellsouth.net> wrote:
Does any one have a picture of a LS-1 Coil mounting bracket, or a link to pictures. At one time I think I saw one that was made out of a piece of 2" Alum. angle.
Thanks
Bob Perkinson RV-9 13B
|
