-------------- Original message --------------
From: "Barry Gardner" <barrygardner@gmail.com>

Ken,

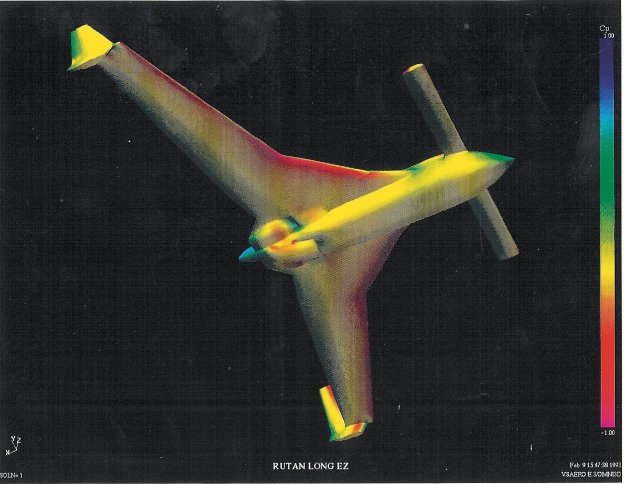

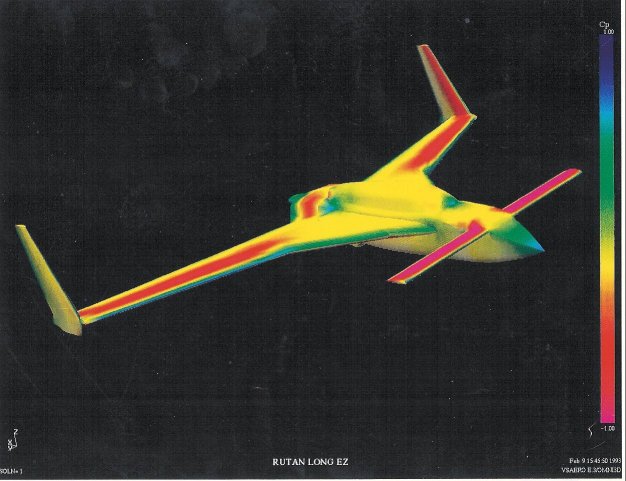

I don't know if planes that are built like God and Wright Brothers intended are sufficiently analogous to your RV4 to provide guidance but I could at least share one pressure map of the underside of an aircraft. I've included the top view to give a complete picture.



Barry Gardner

----- Original Message -----

From: kenpowell@comcast.net

To: Rotary motors in aircraft

Sent: Wednesday, June 07, 2006 1:17 PM

Subject: [FlyRotary] Re: RV6 pressure distribution

I have this jpg and also one for the P-51 (see the attached); I have never seen one for the underside of any aircraft.

Ken Powell
Bryant, Arkansas
501-847-4721
C150 / RV-4 under construction



From: Barry Gardner <barrygardner@gmail.com> Subject: [FlyRotary] Re: RV6 pressure distribution Date: Wed, 7 Jun 2006 19:02:21 +0000 To: Rotary motors in aircraft <flyrotary@lancaironline.net>

Attachment: Long EZ pressure profile 1.jpg  (57K)   Attachment: Long EZ pressure profile 2.jpg  (61K) -- Homepage:  http://www.flyrotary.com/ Archive and UnSub:   http://mail.lancaironline.net/lists/flyrotary/
