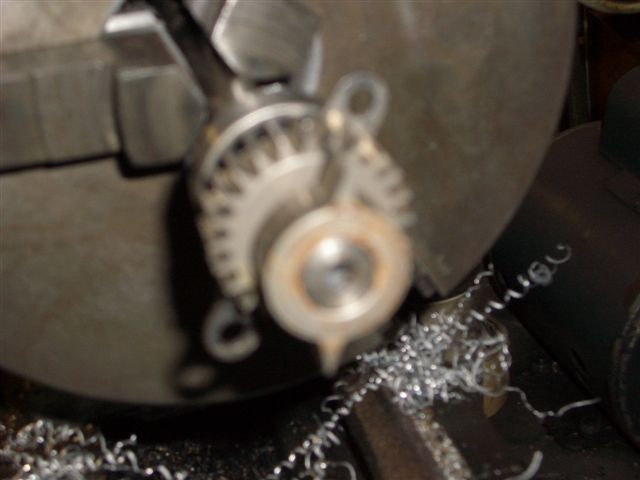

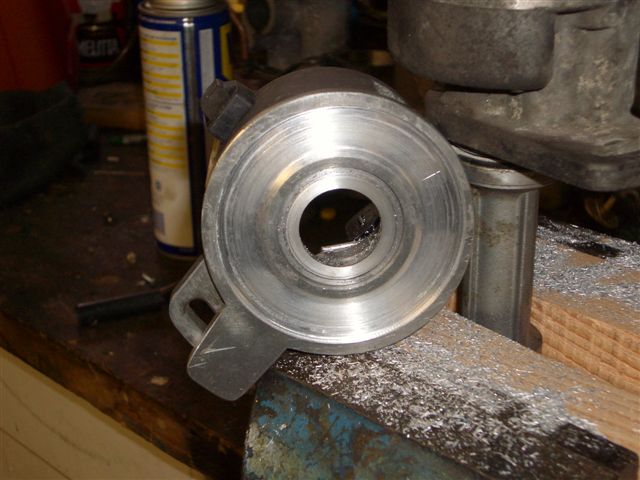

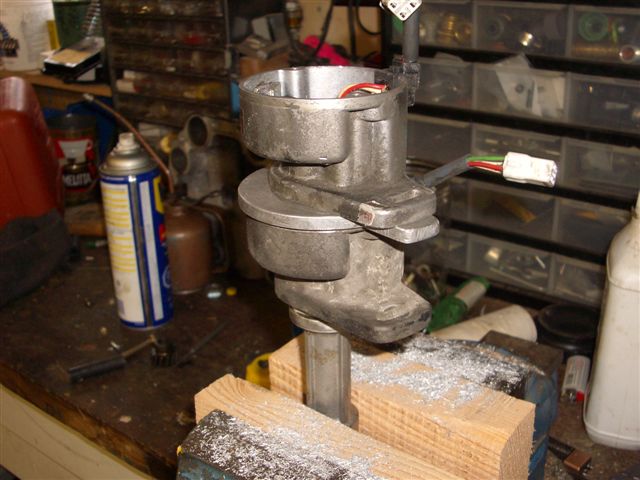

I gave up on the 12a front cover to have igniter redundancy.The first photo is the semi completed unit (need to install upper shaft). Second is the adaptor & 3rd (out of focus)is the upper shaft with the center drilled out for the mounting bolt. The shaft has a ball bearing for support at the top (great support) the bearing retainer is left out as the upper shaft locates the bearing . A star washer between the two shaft will lock the two together.(note: machining accuracy is very important)

The amount of space required shouldn't be a problem on any installation

Georges B.
