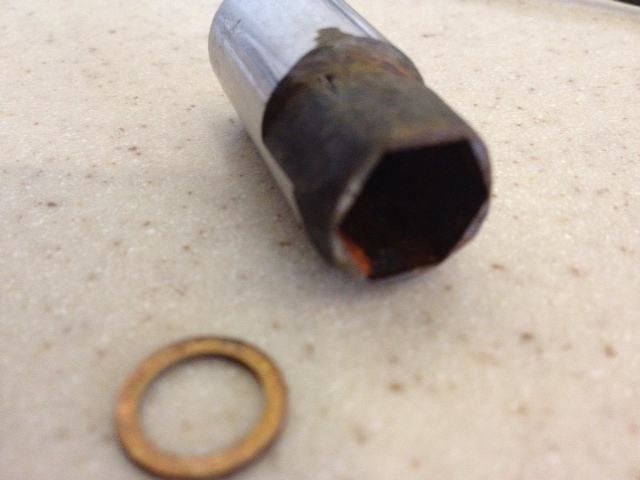

Brian, it's is easy. I took a $8 grinder on sale at Harborfreight and a 3$ tall 7/16 socket 1/4 drive and came up with this disaster, but hey,it works. It was necessary to chop off a half inch from the bottom of the socket to fit under #5, the tightest one on my engine. That removed all six injectors. Then I saw the second pic at lowes for 3$ and it seems better. It is called 7/16 11mm universal socket and it has a hex head and hollow centre. You would just drill out the centre a little more and it will slide over the injector. maybe grind off some of the wall but it is almost perfect off the shelf. I can send my socket up to you gratis or you can make one. I needed to replace a copper sealing washer and two rubber washers. They are hard to find, I made them up. I was able torque wrench five of the six.
Paul
On 2013-11-12, at 15:51, Brian Thompson <bkthomps@gmail.com> wrote:
> After seeing the recent discussions revolving GAMI injectors and swapping
> them out, I would like to purchase or borrow a tool from someone who has
> it or has made one so I can swap my injectors a bit cheaper.
>
> My local FBO/maint has been charging me about $150 each time (1.5hrs of
> labor) for my #6 injector and after the last flight of not seeing the
> right results, I am not paying it any longer- if I had this tool I could
> swap it out much easier (not having to remove intake tube)
>
> Please email me if you have one and would be willing to rent/loan it out
>
> Brian
> N707LH - Lancair Super ES
> Atlanta, GA
>
>
>
>
> --
