Well, I started to attach the first of my stub wings on my Lancair 360 MKII.
I did the left side. After constructing a wing jig, measuring everything
several times, I thought I had everything lined up perfectly, but it looks

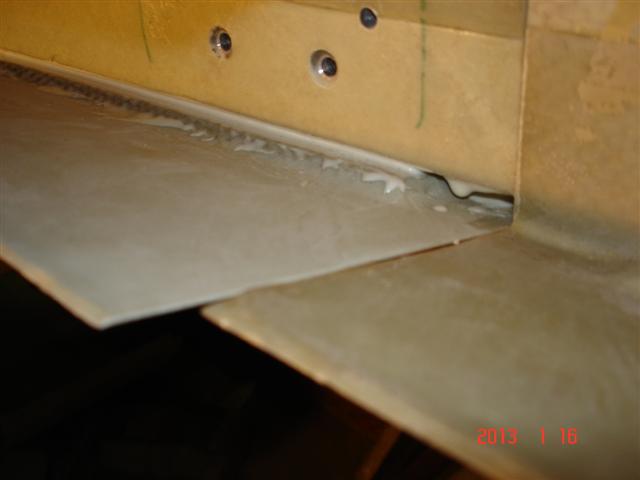

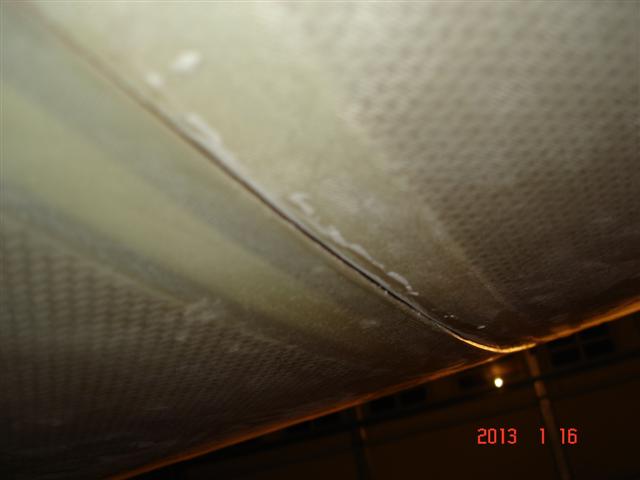

like I was off by about 3/32" in a few places... I attached some pictures.
The trailing edge looks pretty well lined up which I also spent a lot of
time on.
I'm thinking this is a small enough gap that I can use micro and build on,
but I'd like some expert opinions. The leading edge is the worst of it
which was what I spent the most time trying to get lined up.
Most of the top of the wing is lined up, but I have a 1/16" gap in a few
spots that I think I can just smooth with micro and go on.
I thought about cutting the stub wing from the main spar and trying to
re-attach, but if this isn't that bad, I don't want to mess up anything more
if I can smooth it all out with micro.
Thoughts?
-Rob (Lancair 360 MkII, 15% complete... maybe?)
|
|
