Posted for billhogarty <billhogarty@hughes.net>:
Here are the armrest photos you asked for As you can see, the seats have
been removed while the A/C is in paint although I have tried to show the seat
spacing as it is in the plane.
1. Front view both seats withn AR down.

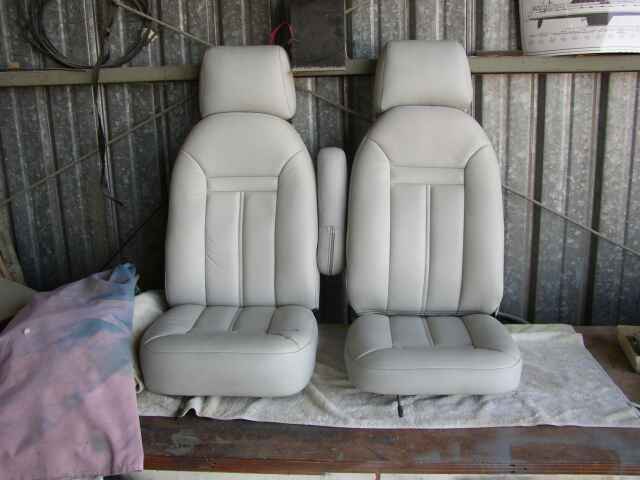

2. Front view both seats with A/R up (stowed)
3. A/R closeup - front (stowed)

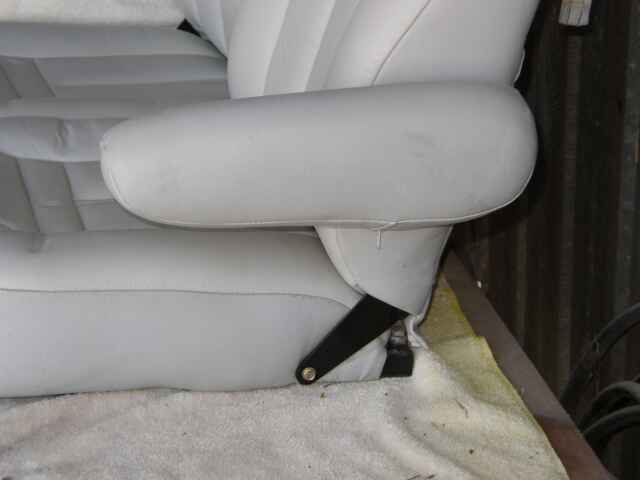

4. A/R closeup - sideview (down)
The armrest is 15 in long, 3 1/4 in wide, 5 in high at rear, tapering to 3.5
in high at front. The armrest is fairly substantial; having been removed
from a large van. It was welded to the copilots seat frame before the
upholstry was added.
FYI, the front of the seats have about 6 inch spacing before the plane of the
T-shaped instrument panel while the armrest in
its down position has about 7 inches to the edge of the seats.
My idea is to have a piece of substantial aluminum cut to fit the footprint
of the A/R bottom with a short extension in front to mount your PC mount. The
aluminum piece could be attached with a couple of wide Ty-wraps. It would be
nice if the mount has a 90 degree swivel so that the armrest could be stowed
with the tablet PC between the seats.
I will be traveling for the next week but hope to have your comments when I
return. Appreciate your help.
Regards, Bill Hogarty
P.S. to LML - This is my best shot at a tablet mount for a L-IV. If anyone
has a better idea, it would sure be appreciated.
|
|
