Anyone have pictures of closing in the aileron lower bellcrank area for pressurization rather than the boot & clamp system?  I am familiar with the idea, but have not seen any pictures of the process or of a completed one.  I can manage without, but surely at more hours than with pictures.



Tom,

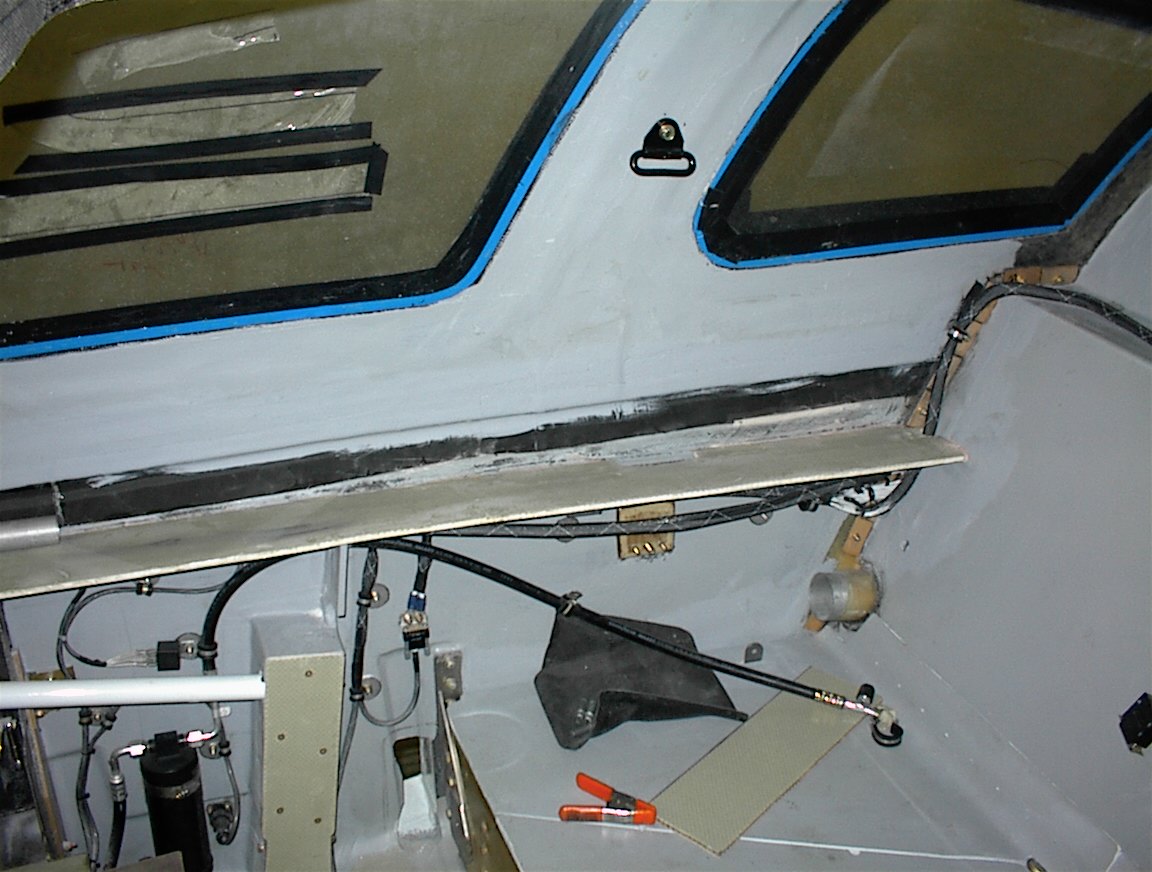

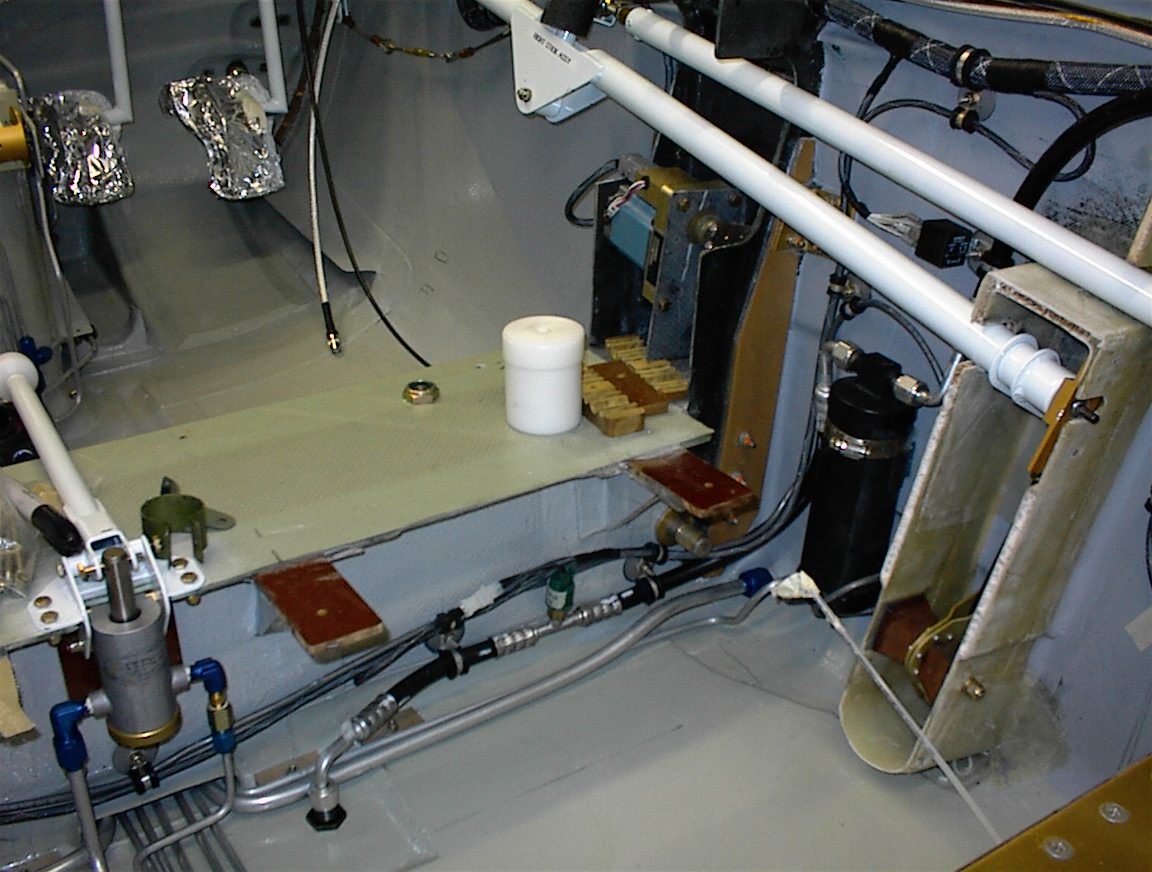

I did a 7-8 bid layup on the bottom and it came out nice with great curve to it. Do not let your layup bond to the floor or it may pull off when you pressurize. I closed off the top with prepreg and then made a prepreg cover for it and held the cover on with #8 screws. Finally, you want a nice close fit on the aileron pushrod. I have seen a nice one using a u-joint and pressure fitting. I just made mine out of Proseal and let it cure . I siliconed the aileron pushrod so it would not stick to the Proseal. Works great.



Jeff Edwards

LIVP N619SJ
