Oops. I forgot to attach the drawings.



Alex Madsen



-----Original Message-----
From: Alex Madsen [mailto:madsena@rose-hulman.edu]
Sent: Saturday, May 22, 2004 3:55 PM
To: 'Rotary motors in aircraft'; 'ACRE'
Subject: CF P-Port Intake Manifold Concept

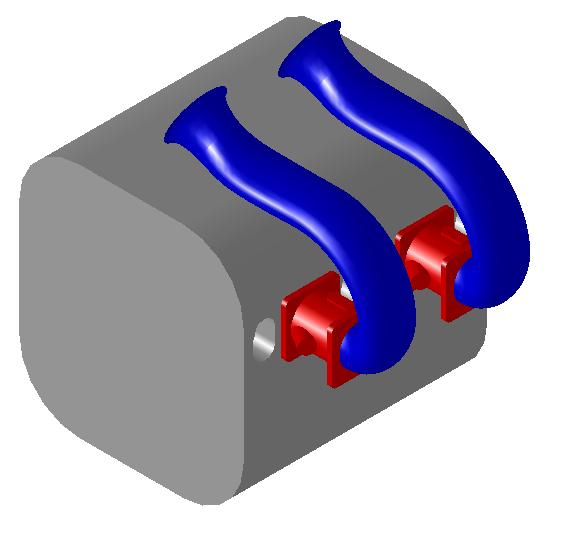

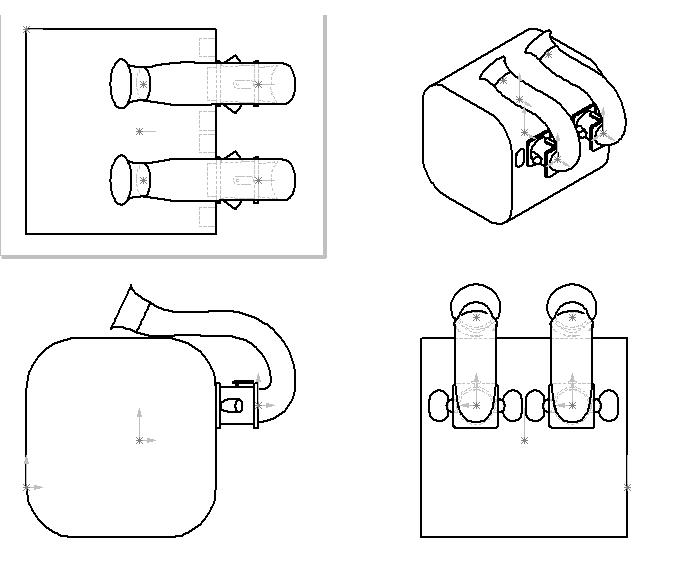

Ok. Here is the carbon fiber p-port intake manifold concept. I found a perfect throttle body for it. Unfortunately the TBs are a little on the expensive side at ~$200 each. Don’t worry about fuel rail placement, I have it figured out.  This will be it for manifold development for the next few weeks. I have finals then I am moving to CO and starting my internship. The length of the runners is not set. At the moment they are about 17 in.



Alex Madsen
