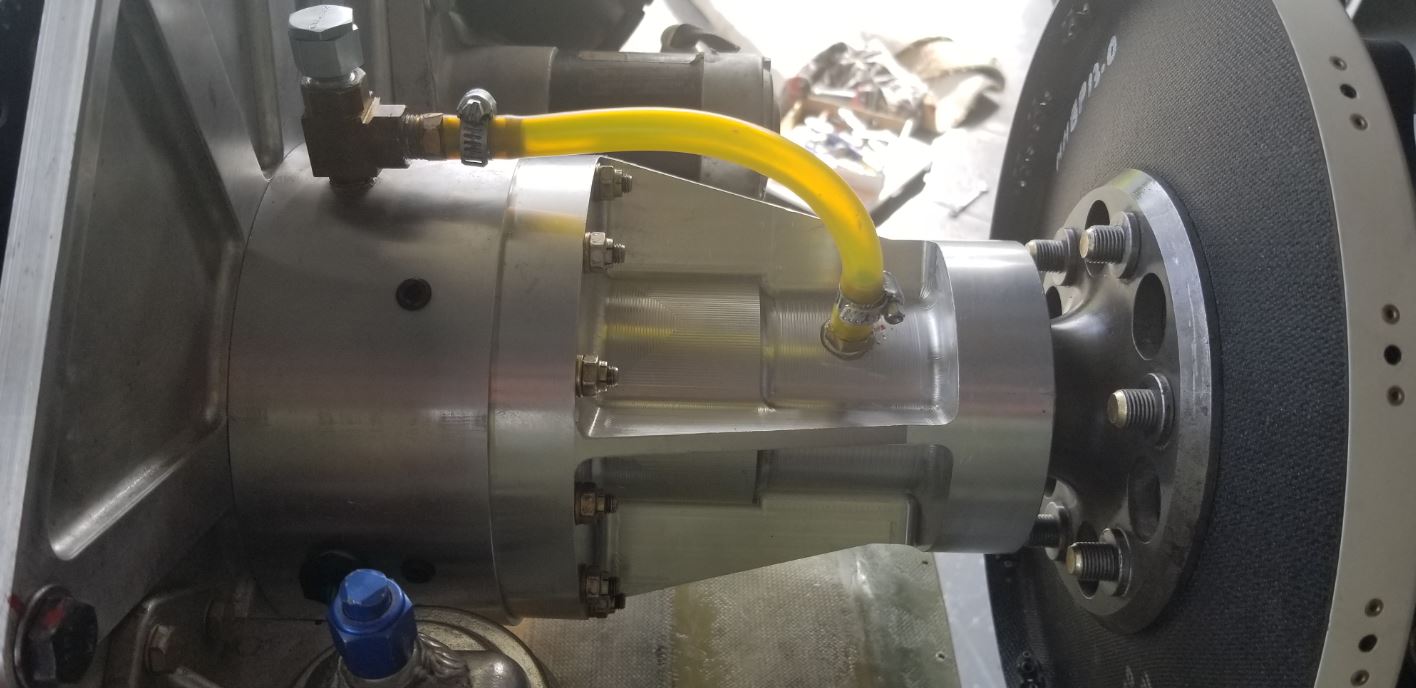

I've been experimenting on Neil's PSRU with sealing it up. Only adding a breather vent on the rear housing. So far I've only done ground testing, but all seems well enough to fly with it soon enough. The Tygon house in the picture was only to see the oil flow, it's capped off now. I ran gear oil 70w-140 and it was way to thick and came out the breather vent, so went back down to my normal engine oil 20w-50. Filled half full, but I think I can go a little less, haven't tested the idle level yet.

On 2019-05-07 12:32:26 PM, Steven W. Boese SBoese@uwyo.edu <flyrotary@lancaironline.net> wrote:

If the original return line was not enlarged, the "vent" line simply acted as an additional return line and my gearboxes operated completely filled with oil.

Steve Boese

> On May 7, 2019, at 9:41 AM, Jeff Whaley jwhaley@datacast.com wrote:
>
> ◆ This message was sent from a non-UWYO address. Please exercise caution when clicking links or opening attachments from external sources.
>
>
> Hi Steve, is the enlarging of the oil return necessary?
> I thought you first tried enlarging the return line expecting it to improve draining, only to find no improvement until the vent line was added.
> Jeff
>
> Jeff,
> At this point I have only 3 hr of flight time on the gearbox with the modified drain and vent. I have not observed a significant effect with respect to power absorption or heat generation.
>
> Connecting the vent line to the foot of the rotor housing was ineffective even though this location was above the oil level. Connecting the vent line to the area of the oil filler opening at the top of the center iron allowed the gearbox to drain as intended.
>
> The most troublesome part of the modification was enlarging the oil return to 1/2" NPT in the rotor housing foot.
>
> Steve Boese
>
>
> --
