Sorry Mark, that came out a bit harsher than I intended!   BTW,   the current version of the EC2/3 software (since about two months ago) now programs both A & B when you tune A.   You can still program B differently when running on B if desired as changes to B do not affect A.

On your rotor 1 symptoms between 3800 and 5000, I was wondering if you still had the resistor between CAS and EC2 that you were using to try and make the Renesis CAS work.  If so, you might try eliminating it since you are using the original CAS.   That's one reason I was anxious to hear if B had the same symptom.

Sounds like the CAS sensor circuit change I installed in (Brian's ?) EC2 13-BREW  fixed the high rpm breakup problem so anyone having similar symptoms on BREW or Renesis engines using the EC2 should have that change too.

Tracy

Sent from my iPad

On Mar 21, 2012, at 4:56 PM, Mark Steitle <msteitle@gmail.com> wrote:

> Tracy,
>
> OUCH, that hurts!  OK, here's the rest of the story.  I've changed my

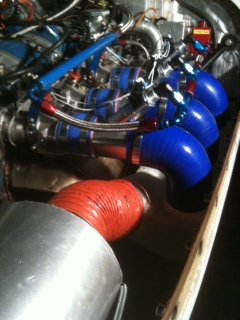

> intake manifold and changed injector sizes, so I'm back to the tuning
> phase.  The B controller won't run right now as I haven't copied A to
> B yet.  I'll have to do that before I can try the B controller.
> Thanks for reminding me that I typically do things the hard way.
>
> Mark
>
> On 3/21/12, Tracy <rwstracy@gmail.com> wrote:
>> Trying the B controller should always be the FIRST thing to try since it is
>> the easiest.   This needs to be ingrained in all EC2/3 users mental (or
>> preferably written) engine failure check list.   Everything including the
>> coil & injector drivers are swapped out when selecting B controller.   Based
>> on the number of time I have asked if the B controller was tried when called
>> about an engine anomally I have concluded that very few builders are even
>> aware it it there : ).
>>
>> Tracy
>>
>> Sent from my iPad
>>
>> On Mar 21, 2012, at 3:58 PM, Mark Steitle <msteitle@gmail.com> wrote:
>>
>>> I have been chasing a problem with my p-port 3-rotor where the #1
>>> rotor cuts out at around 3800 rpm, but comes back at around 5000 rpm.
>>> When this happens, I can hear a change in the exhaust, and I see the
>>> EGT on #1 drop way down to around 500*, so that's how I determined
>>> that it was the #1 rotor.  The other two rotors continue to run
>>> normally.
>>>
>>> I have tried swapping coils, replacing the #1 rotor's plugs & coil
>>> wires, and swapping injectors.  I have not tried the B controller, but
>>> that sounds like what I should try next.  My suspicion is there may be
>>> a defective coil driver circuit in the EC-2.  I have borrowed another
>>> 20B EC-2 to try, but won't be able to do the swap until this coming
>>> weekend.
>>>
>>> Since things have been so quiet on the list, I thought I would post
>>> this strange problem and see what suggestions others may have.
>>>
>>> Mark S.
>>>
>>> --
