Jarrett,

The final version of back-plates for both the Mistral 13B and 20B for certification and before bankruptcy were of a new
design...................When I last talked to their chief engineer Gordon Anderson about a spare water-pump he said that they

were not available as they had changed the back-plate design to address compromises made to accommodate the stock

Mazda front side housing and the new back-plate design would not fit the stock Mazda front housing and the water-pump

was also of a new design......................I took this to mean that they were now producing their own version of the front side

housing..............It was at this point they lost interest in selling parts to us experimenters as they were then on the fast track

toward certification..................The lower mount ears were bolt on.................See attached photos..............

Kelly Troyer
"DYKE DELTA JD2" (Eventually)

"13B ROTARY"_ Engine
"RWS"_RD1C/EC2/EM2
"MISTRAL"_Backplate/Oil Manifold

"TURBONETICS"_TO4E50 Turbo

From: H & J Johnson <hjjohnson@sasktel.net>
To: Kelly Troyer <keltro@att.net>
Sent: Tue, April 26, 2011 12:47:59 PM
Subject: Re: Fw: Mistral 'Like' Intake

Thanks Kelly! It's a nice promo sheet. I noticed in the CAD views that it looks like the lower mounts are bolt on?

I've got alot of stuff to work through here over the next little while. I did get your other email there lastnight. I cleaned out my inbox overnight so it has 'some' room. My inbox is supposed to be upgraded to a 1Gb inbox here pretty soon, so tht shouldn't be an issue in the future.

Thanks again for all the intel, all VERY good stuff

Jarrett Johnson
www.innovention-tech.com

Jarrett,

This post bounced last night..........Said it was over Quota

Kelly Troyer
"DYKE DELTA JD2" (Eventually)

"13B ROTARY"_ Engine
"RWS"_RD1C/EC2/EM2
"MISTRAL"_Backplate/Oil Manifold

"TURBONETICS"_TO4E50 Turbo

Jarrett,

Mistral info says their 20B G-300 engine CG is 11.73 inches from mount...............Early info

I saw said that a bed type mount was an option...........They then used just the lower rear mount

ears and had bolt on mounts to the PSRU for the front lower mount points.............

Kelly Troyer
"DYKE DELTA JD2" (Eventually)

"13B ROTARY"_ Engine
"RWS"_RD1C/EC2/EM2
"MISTRAL"_Backplate/Oil Manifold

"TURBONETICS"_TO4E50 Turbo

From: Kelly Troyer <keltro@att.net>
To: Rotary motors in aircraft <flyrotary@lancaironline.net>
Sent: Mon, April 25, 2011 10:37:25 PM
Subject: [FlyRotary] Re: Mistral 'Like' Intake

Bill,

My info says the Type 2 ,18 degree was introduced when O-320's were put in twin Comanches

with extra long constant speed prop extensions (for a more streamlined cowl)............This then put

the engine CG further forward so to keep the Dynafocal mount "Focal" point slightly ahead of the

engine CG the Dynafocal mount angle was reduced from 30 degrees to 18 degrees.........

The Dynafocal type 1 focal point is 14.323 inches from the mounts..................The "Mistral" 13B

engine CG is 9.44 inches from the mount so should work well with the type 1, 30 degree Dynafocal

mount..............IMHO

Kelly Troyer
"DYKE DELTA JD2" (Eventually)

"13B ROTARY"_ Engine
"RWS"_RD1C/EC2/EM2
"MISTRAL"_Backplate/Oil Manifold

"TURBONETICS"_TO4E50 Turbo

From: Bill Bradburry <bbradburry@bellsouth.net>
To: Rotary motors in aircraft <flyrotary@lancaironline.net>
Sent: Mon, April 25, 2011 10:13:02 PM
Subject: [FlyRotary] Re: Mistral 'Like' Intake

There is also a Type 2 Dynafocal that I think is in more common usage. If I recall the angle on it is 17 degrees.

Bill B

From: Rotary motors in aircraft [mailto:flyrotary@lancaironline.net] On Behalf Of Kelly Troyer
Sent: Monday, April 25, 2011 4:57 PM
To: Rotary motors in aircraft
Subject: [FlyRotary] Re: Mistral 'Like' Intake

Jarrett,

I found the "Dynafocal" info................Was on my other computer !!..................

Kelly Troyer
"DYKE DELTA JD2" (Eventually)

"13B ROTARY"_ Engine
"RWS"_RD1C/EC2/EM2
"MISTRAL"_Backplate/Oil Manifold

"TURBONETICS"_TO4E50 Turbo

From: H & J Johnson <hjjohnson@sasktel.net>
To: Rotary motors in aircraft <flyrotary@lancaironline.net>
Sent: Mon, April 25, 2011 11:21:48 AM
Subject: [FlyRotary] Re: Mistral 'Like' Intake

The scanning should give in the tens of thousands [0.01"] or less depending on what type of equipement used etc. That in conjunction w/ bolt hold placement that I already have [lots of collected data over the years] I should be able to duplicate the basic geometry. From there it will become a new product in that we want to make it something that works for everyone [or as many as possible] to make it a viable unit. That info, mixed w/ knowing what the 'Standard' mount geometry is should get us where we need to go.

Best regards

Jarrett Johnson
www.innovention-tech.com

----- Original Message -----

From: Kelly Troyer <keltro@att.net>

Date: Monday, April 25, 2011 10:03 am

Subject: [FlyRotary] Re: Mistral 'Like' Intake

> Jarrett,
>
> I do not know exactly what dimensions the scanning give you
> such as bolt
> hole placement, etc.........I presumed
> that the angles of the mount ears needed for the "Dynafoal" mounts
> would be
> "Dead" on though..........
>
>
> Kelly Troyer
> "DYKE DELTA JD2" (Eventually)
> "13B ROTARY"_ Engine
> "RWS"_RD1C/EC2/EM2
> "MISTRAL"_Backplate/Oil Manifold
> "TURBONETICS"_TO4E50 Turbo
>
>
>
>
> ________________________________
> From: H & J Johnson <hjjohnson@sasktel.net>
> To: Rotary motors in aircraft <flyrotary@lancaironline.net>
> Sent: Mon, April 25, 2011 10:49:43 AM
> Subject: [FlyRotary] Re: Mistral 'Like' Intake
>
> Excellent, now I just need to get some Dynafocal dimensions [I've
> seen it on
> the web in the past, just gotta re-locate the dimensional
> 'standards']. That in
> conjunction w/ a few scans & the picture will start to really take
> shape!
>
> I love progress :)
> I can't say Thanks enough Kelly, w/out the help of yourself and
> others it would
> be a much steeper curve to get it up to speed.
>
> Jarrett Johnson
> www.innovention-tech.com
> -- Homepage: http://www.flyrotary.com/ Archive and UnSub:
> http://mail.lancaironline.net:81/lists/flyrotary/List.html
>

--

Homepage:  http://www.flyrotary.com/

Archive and UnSub:   http://mail.lancaironline.net:81/lists/flyrotary/List.html

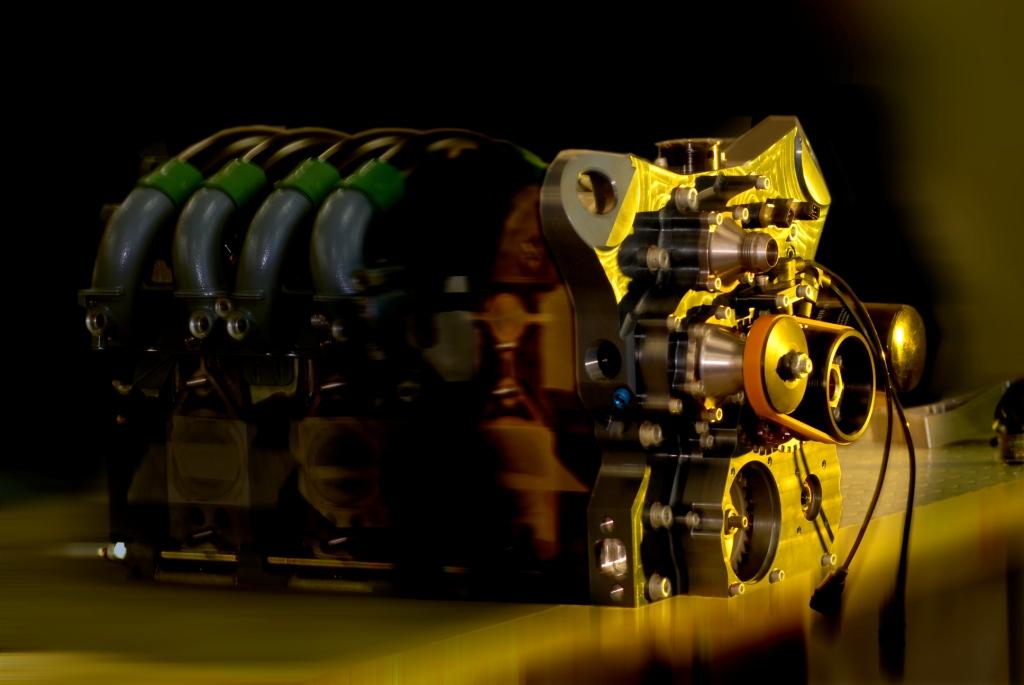

Attachment: MISTRAL_ FINAL BACKPLATE VERSION.jpg

(71K)

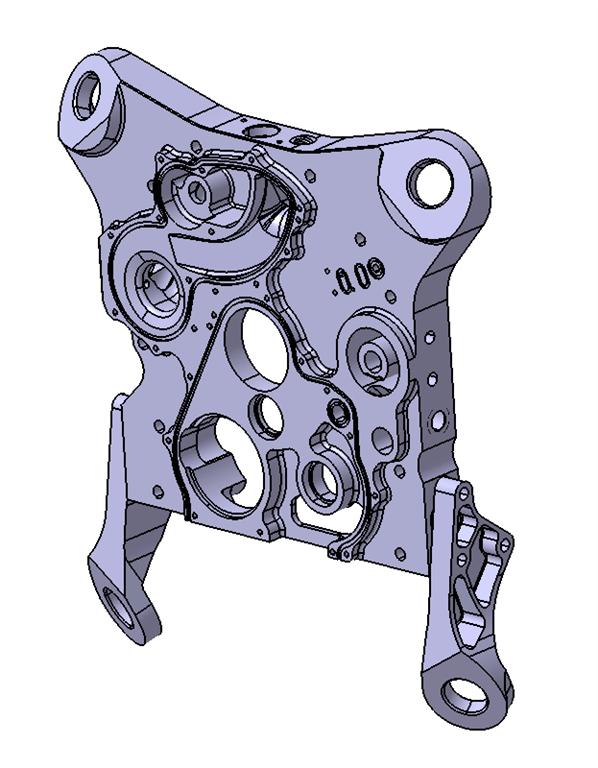

Attachment: MISTRAL_FINAL RearPlate_drawing (Large).jpg
