I have a duplicate of my manifold for a
20B that I’ll sell for a reasonable price. I can’t locate the

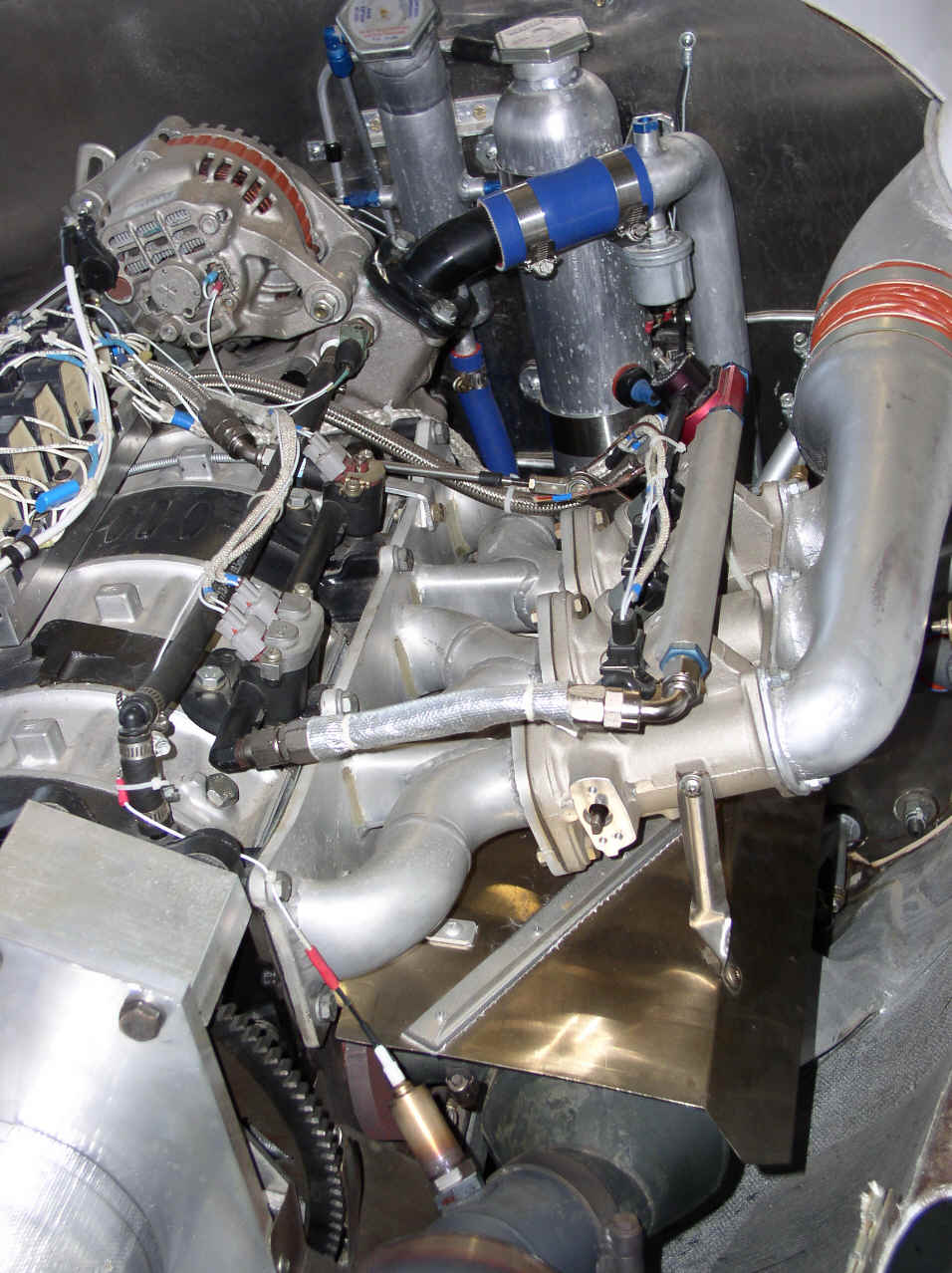

photos of the duplicate just now, but this shows the one on my airplane –
with which I have been very happy over the past 200 hours in the air. It
matches up with the TWM 3-barrel throttle body.
Al
-----Original Message-----
From: Rotary motors in
aircraft [mailto:flyrotary@lancaironline.net] On Behalf Of Thomas Giddings
Sent: Saturday, April 16, 2011
10:31 AM
To: Rotary motors in
aircraft
Subject: [FlyRotary] Re: Mistral
Intake Documentation?
This question on Mistral Intakes reminds me of a
question I have about the possibility of getting a Mistral three rotor intake.
Anyone know if this possible and if so where would I get one?
Tom Giddings
VP Avionics Sales
MIDWEST
AVIONICS
200 Hardy Roberts Dr
PO Box 219
West Paducah,KY 42086
877-904 9966
Cell; 727 858-1772
FAX:270 744 3466
tom@midwestaviation.net
On Apr 16, 2011, at 2:23 PM, Kelly
Troyer wrote:
You need to talk to
Chris Barber in Texas (Mistral Intake) and Steve Thomas in Calif (Complete
Mistral 13B)....
I only have the Mistral
backplate for mounting to Lycoming "Dynafocal" engine
mount.........There may be others
on the list that have the Mistral
engine or intake............
Kelly Troyer
"DYKE DELTA JD2" (Eventually)
"13B ROTARY"_ Engine
"RWS"_RD1C/EC2/EM2
"MISTRAL"_Backplate/Oil Manifold
"TURBONETICS"_TO4E50 Turbo
From: Jack Hilditch <wmjack@t3cs.net>
To: Rotary motors in
aircraft <flyrotary@lancaironline.net>
Sent: Sat, April 16, 2011 1:01:07 PM
Subject: [FlyRotary] Mistral Intake
Documentation?
I bought an in-progress RV-9A
project from a builder in Florida a while back. I had intended to put a rotary
in it anyway, but the previous builder already had a Bruce Turrentine 13B long
block in hand with a Mistral intake, an RD-1C, Tracy's 'black
boxes' (v2), Tech Welding cooling cores and a Conversion Concepts' engine mount
available at a reasonable price so I bought the firewall forward parts as well.
I've been working my way through the
rivet banging portion of the project and it's about time to start preliminary
work with the engine. I've decided to build a test stand and get the motor
running this summer. What I've been unable to find (so far) in the accompanying
paperwork is any documentation for the Mistral parts (intake manifold, fuel
rail, etc.). Does anyone on the list have Mistral documentation that they would
be willing to share? Specifically, I’d like to obtain an exploded or
annotated diagram with call-outs of the intake manifold and fuel rail. It would
be excellent if the torque specs for all fasteners on the two parts were
available as well. Any help would be appreciated. Thanks.
|
|
