From: Ernest Christley <echristley@att.net>
Subject: intake blower update
Date: Thu, 02 Dec 2010 23:05:04 -0500
To: Rotary motors in aircraft <flyrotary@lancaironline.net>
 Message Header

Undecoded Message
I've been working diligently on this.  I first tried to make a casted aluminum piece.  That failed.  I was able to make
several small parts, but trying to cast this big plate resulted in a paint can sized chunk of aluminum stuck in the
furnace.  I ran out of fuel at just the wrong time.

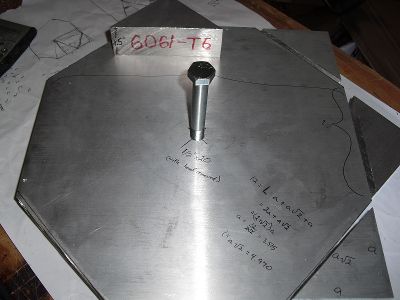

So, I ordered a 12"x12"x1.5" block of 6061-T6, chopped off the corners, chopped off then new corners, tapped the center

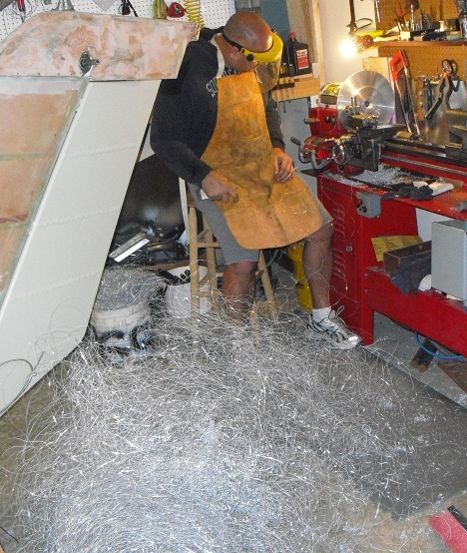

for a 1/2" bolt, and started turning.  The pile of shiny stuff is aluminum swarf.  The lathe was kicking it out like a
web out of a spider.

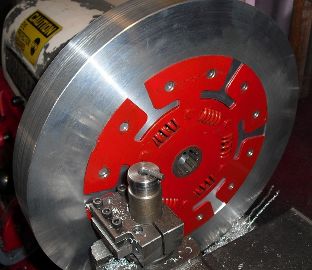

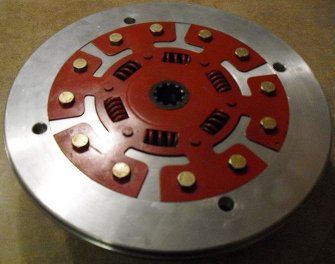

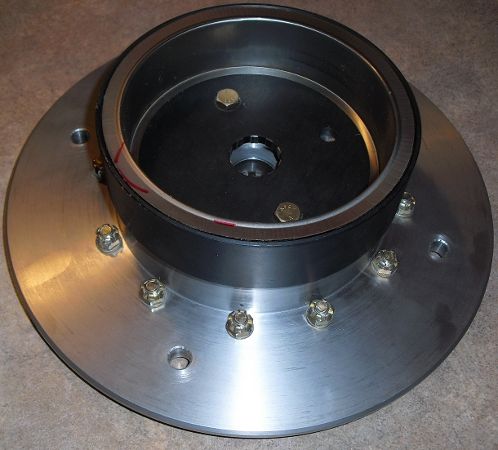

The Harley-Davidson rotor bolts onto the front.  I turned an alignment tool to center it.  The clutch plate snaps
(literally clicks when it goes in) into the back of the plate, and the whole assembly snaps into the flex plate.

The only step left is to rivet the impeller blades onto the plate, fill the pump body with foam and carve a volute, then
glass it in.
