Bob,

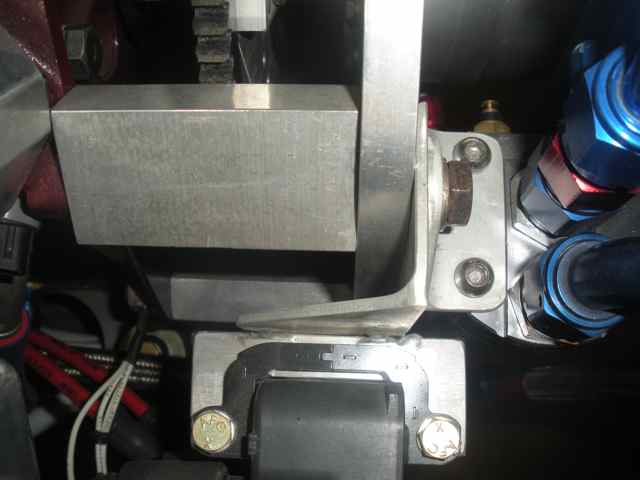

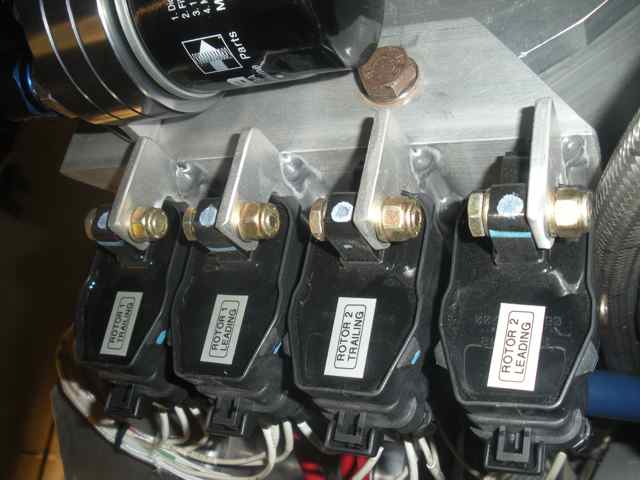

Is this what you are referring to? Not the greatest pics, but had to run out to the shop fridge for my wife, so I snapped a couple of pics real quick. I just welded up some U shaped pieces onto a piece of 2" aluminum angle, then drilled and bolted it up. (note where coils will set on U shape, and allow room for weld bead. I had to grind some of my weld back off to allow coil to sit flush on the U shape)
I can send you bigger pics if you want more clarity. Cut them down pretty small so as to get them through the FlyRotary gates.
Best,
Ben
--- On Thu, 9/2/10, Bob Perkinson <bobperk90658@bellsouth.net> wrote:
From: Bob Perkinson <bobperk90658@bellsouth.net>
Subject: [FlyRotary] LS-1 Mounting bracket
To: "Rotary motors in aircraft" <flyrotary@lancaironline.net>
Date: Thursday, September 2, 2010, 5:29 PM
Does any one have a picture of a LS-1 Coil mounting bracket, or a link to pictures. At one time I think I saw one that was made out of a piece of 2" Alum. angle.
Thanks
Bob PerkinsonRV-9 13B
|
|
