Hi kevin,
   I'm going on a old memory that may be wrong but I seem to remember a picture of your manifold that looked like the two Webber barrels dumped into a common chamber.  If that is true, you should start over and keep the barrels separate, I.e., one to each rotor.  Even if this is not the reason for your mixture mismatch now it is the only way to go.

Tracy

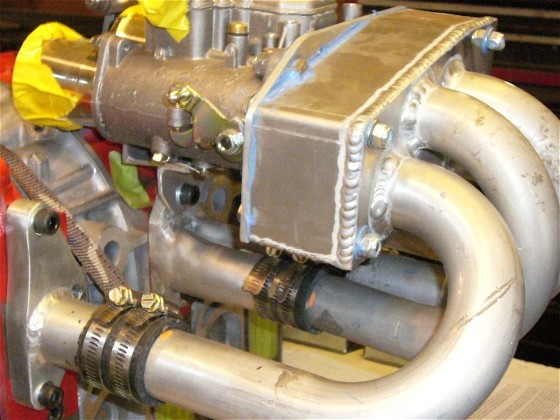

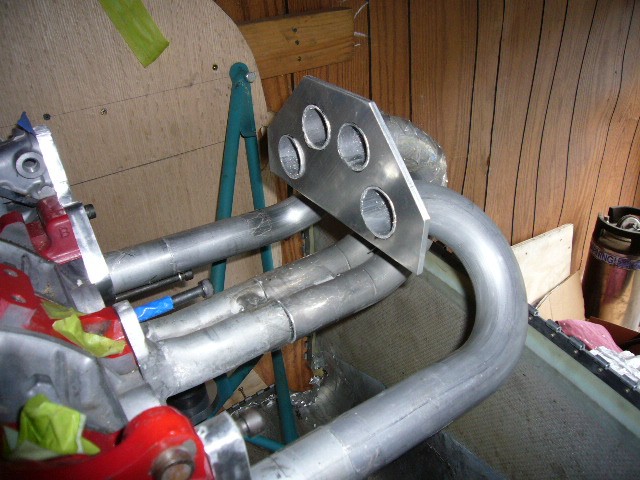

here is my intake.  the bolts and silicon are gone because I had it welded.  should I simply cut it in half and weld a divider plate down the middle or devise something else?  the plenum box was the only easy transition I could come up with while keeping runner lengths optimal.  I guessed that it would create a good reflective wave also since the cross-section transition is radical.
