Lynn,

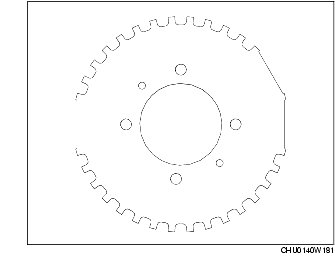

Here is a piece of the picture from the book. Will the position
sensor work with the plate on either direction? I can put the plate
on as shown, or flip it around 180 degrees. But then the two flat spots
are on the opposite side. I don’t know if this plate needs to be
aligned with the rotors or something else so that the position sensor works
correctly.
CHris
From: Rotary motors in
aircraft [mailto:flyrotary@lancaironline.net] On Behalf Of Lynn Hanover
Sent: Sunday, October 12, 2008 6:55 PM
To: Rotary motors in aircraft
Subject: [FlyRotary] Eccentric shaft position plate
Here is a picture of my current progress. Tomorrow I
hope to get more parts
added.
The question for today is about the Eccentric shaft position plate. I can
put it on two ways, 180 degrees out from each other. I assume the stamped
arrow goes out, but how do I know which way to put the plate on? Or does
it
even matter? The repair manual doesn't specify.
Chris
I am not familier with that term. What is it you need to
know?
