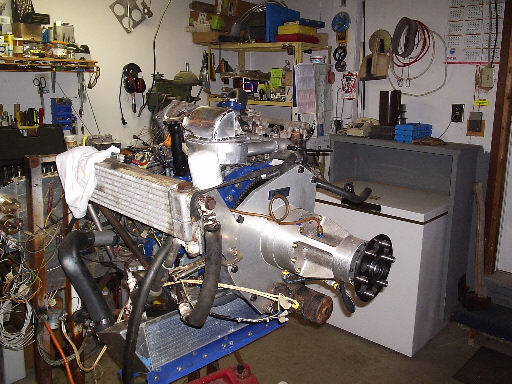

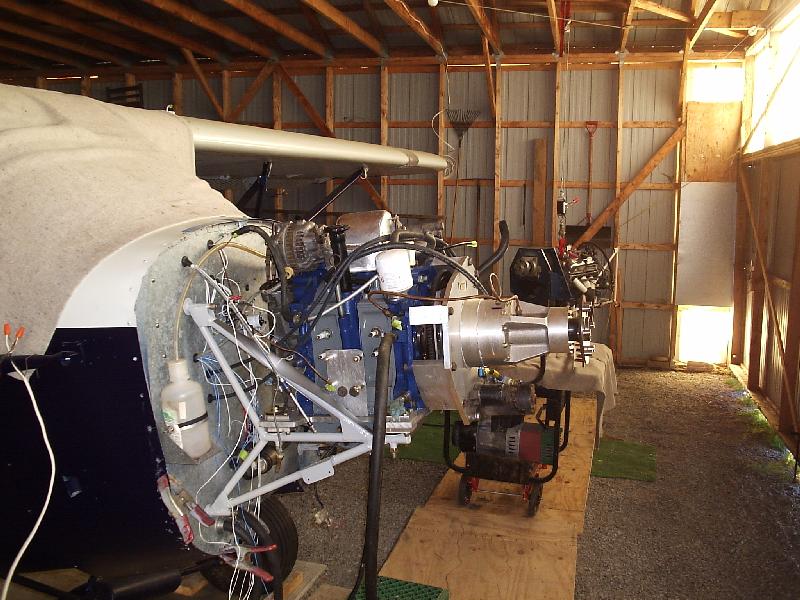

Some photos as promised before, radiator is 20x5x5 (Ron Davis), mounting
bracket on bottom support of mount ... oil cooler location not finalized ...
will either be over or under RWS RD1-C.
Jeff
-----Original Message-----
From: Rotary motors in aircraft [mailto:flyrotary@lancaironline.net] On
Behalf Of Dennis Haverlah
Sent: Monday, May 28, 2007 11:39 AM
To: Rotary motors in aircraft
Subject: [FlyRotary] Re: Emailing: DHDUCT.jpg
Ed:
Thanks for the ideas and Figures. I agree that having the diverter plate at the opening can cause lots of tubulance - expecially in climb. I have removed the plate and am waiting for the rain to quit so I can test fly it again. If it is back to marginal but workable cooling I'll try another mod.
I'm interested in drawing on pictures and also sketching the duct so I can send more information to the group. How do you draw on pictures?
I'm using Windows XP but don't have much experience with it. Pictures of the inside of the duct have proven hard to take and show any good information.
|
|
