Does anyone have a diagram of the fuel
injectors. The Haynes Manual doesn't have a sequence of the fuel injector
and the various o-rings and the diffusers. Does the diffusers have o-rings
on them, there appears to be two o-ring groves on the diffusers. Any help
would be greatly appreciated. Thankyou in advance. JohnD
Hi John,
Mazdatrix has a good page that shows all the various air
bleeds (diffusers), and the pictures are good enough to see where the
o-rings fit. http://www.mazdatrix.com/c-6.htm

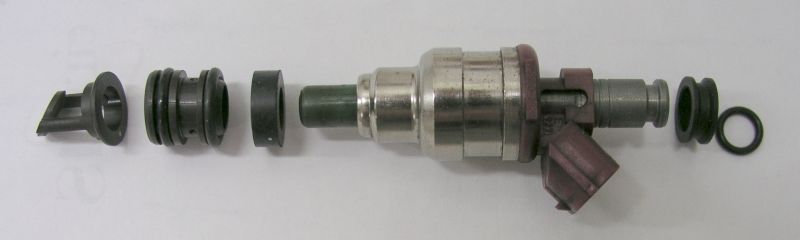

Attached is a picture I took to show the order of the
injector assembly for what I was using at the time.
Cheers,
Rusty (can't stop thinking about single rotor
