In a message dated 7/25/2006 8:22:09 P.M. Eastern Daylight Time,
dcarter11@sbcglobal.net writes:
Lynn, I understand the concept of radiant heat shields and like the idea
of fabricating custom shields to put where I need them.
. . . I can't visualize the "3 z shaped tabs" and how to attach them
to an exhaust pipe with 1/4" hose clamps and have 3/4 inch air gap between
pipe and shield.
David

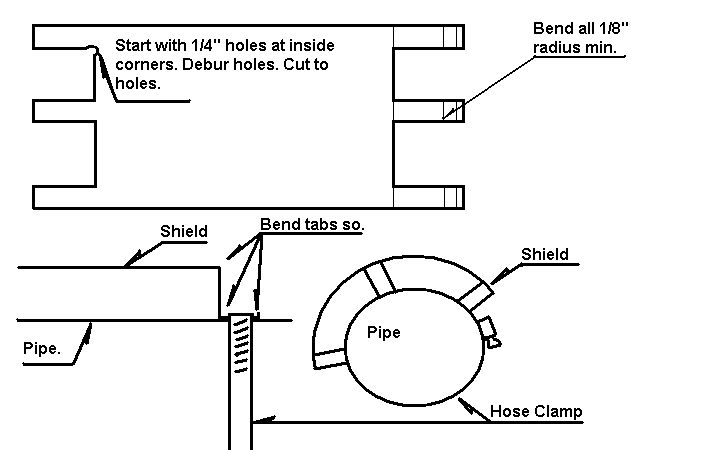

This is in MSPaint so it is not as good as it should be.
I would drill and wire the clamp screw as well as a loop beside the clamp,
just in case the clamp goes away.
Lynn E. Hanover
