Hi All;
Posted this on the other list - some of you may be interested in this
teststand setup as well...
I was hoping to have this setup running months ago on the test stand
with the Megasquirt - damn work is interfering with more interesting
activities...

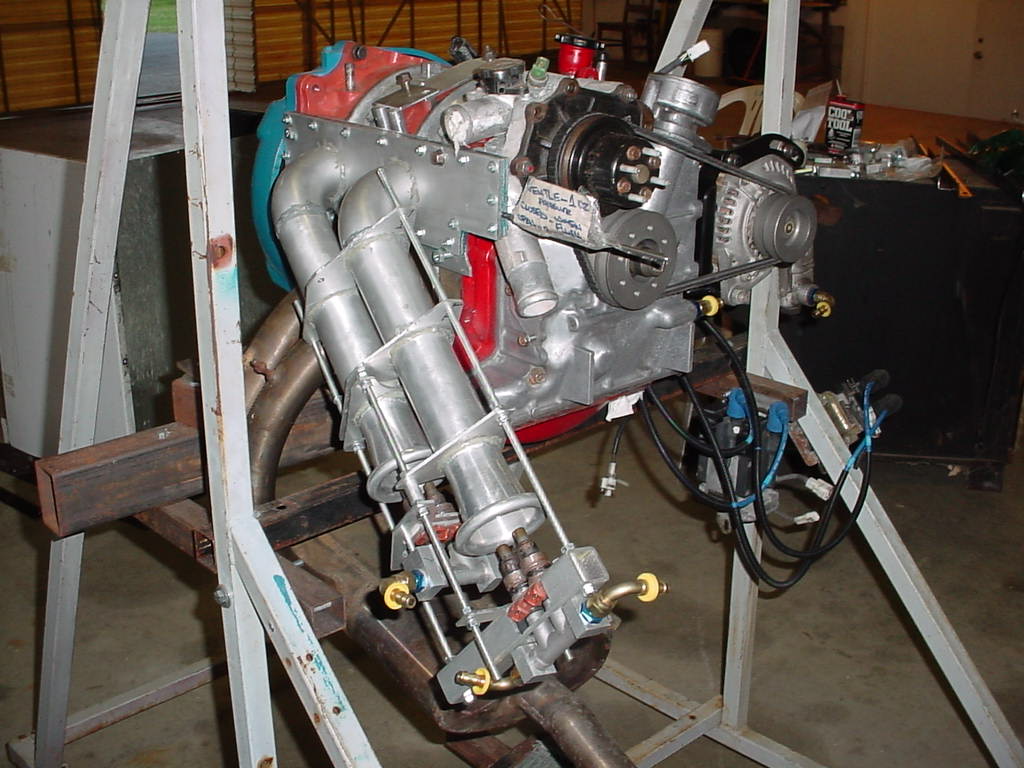

The slide throttle is flush with keg. The notch was to avoid the stock
water pump, I wish I had been annoyed enough to chop it up earlier...
Same for the adjustable, telescopic intake. I will rebuild almost flush
with the engine and at a different angle flush with the bottom of the
oil pan after testing.
Usable range (from rotor housing face) is 19-27". Could be modified for
inflight adjustment.
Injector location will probably make it difficult to pull fuel uphill
for start - we will see.
Based on Francois' (Mistral) comments I will probably move the injectors
closer to the keg.
Besides, they are mucking up the airflow.
One of the objectives was to take advantage of the smaller rotary
profile - the height/width could be shrunk further...
Cheers
Cary
|
|
