I need some advice on installing my oil cooler on the Renesis.

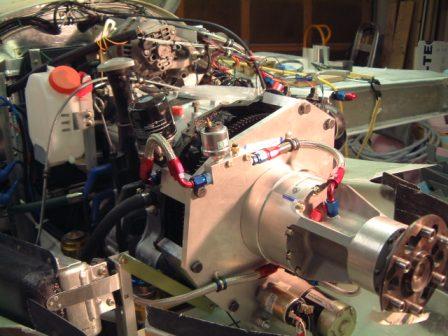

I installed my oil cooler on the plugs side. The attached picture shows the
front bracket (about the 7 O'clock position in the picture). You're right,
you don't want it attached to the engine. I drilled two #10 holes in the
engine mount brace that joins the fore-aft members at the very back (I've
got a pusher). Since that brace sees little or no load I figured a couple of
3/16" holes wouldn't hurt. The brace on the firewall end uses 1/8" aluminum angle and Adel clamps.
Hope that helps.
Joe Hull
Cozy Mk-IV #991 (In Phase1 Flight Test - 10.9 hrs flown) Redmond (Seattle), Washington
|
|
