-------------- Original message from "Michael Haynes" <mickandfi@ihug.com.au>: --------------



----- Original Message -----

From: Michael Haynes

To: Rotary motors in aircraft

Sent: Sunday, September 11, 2005 9:49 PM

Subject: IVO prop, brush mount

Hi John

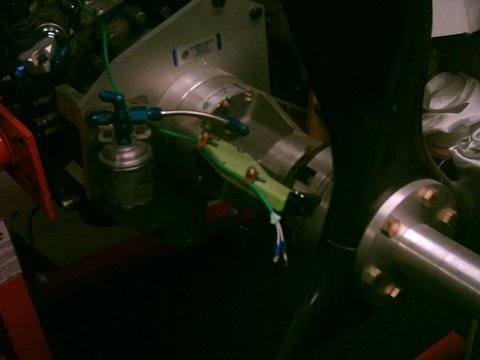

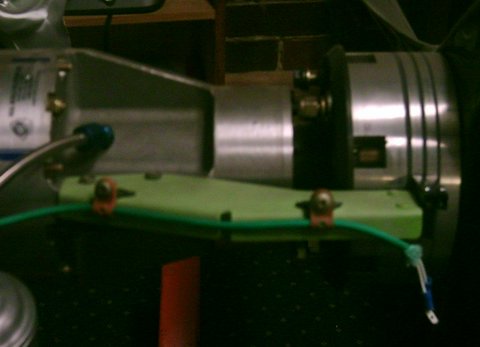

  I made my brush mount from 0.063" 2024-T3. folded up two brackets and riveted them together making a channel that fits over the stiffener of redrive. Riveted a solid section at the brush end of the mount, Tapped the solid section for a locating pin and attach bolt for the brush's. I'm not flying yet, due to the 18 month's that I have been waiting for my mount from CCI, but it seems to work well when rotating prop by hand and operating the pitch. I have attached a few pic's. Sorry for the picture quality, cheap camera and flash not working. I hope they help anyway....

  Cheers

    Michael Haynes.

From: Michael Haynes <mickandfi@ihug.com.au> Subject: [FlyRotary] Fw: IVO prop, brush mount Date: Sun, 11 Sep 2005 12:20:05 +0000 To: Rotary motors in aircraft <flyrotary@lancaironline.net>

Attachment: PHTO0003.jpg  (35K)   Attachment: PHTO0008.jpg  (27K)   Attachment: PHTO0007.jpg  (25K) -- Homepage:  http://www.flyrotary.com/ Archive and UnSub:   http://mail.lancaironline.net/lists/flyrotary/
