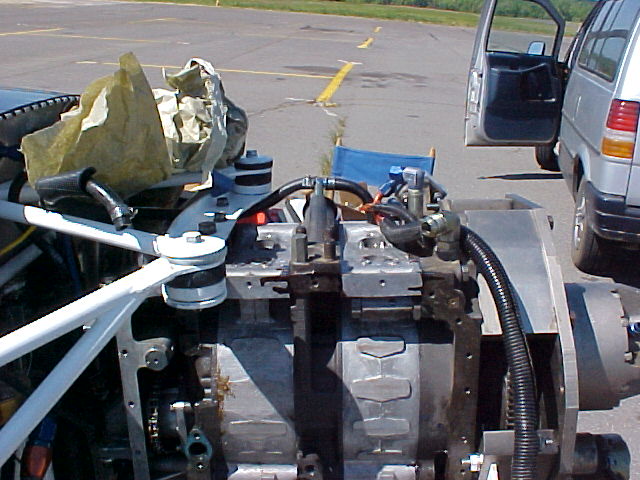

I agree with Buly, must have moving oil over the temp sensor to keep its heat status "updated" continuously. What I did was where I used a 90 deg elbow to return oil to the block (the golden looking 90 deg fitting on the top front of the engine block in the photo). I then drilled and tapped the 90 deg fitting (you can't see it on the other side of the fitting) for the temperature sensor. It is sensing the oil as it flows up from my oil cooler and just before it goes into the block.
Ed A
: [FlyRotary] Re: temp senders
Wendell, you can not get oil temp. from the oil pressure port. You need oil
flow over the sender.. Find another location.
buly
On 4/30/05 11:03 AM, "Wendell Voto" <jwvoto@itlnet.net> wrote:
Since engine actually started, next step is to get all the temp sensors
hooked up and get intake manifold finalized.
Is the ATM2265 the correct adapter for the oil pressure sender port? Need to
put a tee or a cross fitting on oil line to get pressure gauge, reduction
gear oil and temp.
I noticed that Ed is using a 75 mm throttle body. Is this the best size? If
so will be watching for one.
Wendell
