In a message dated 04/15/2005 11:31 Central Daylight Time, keltro@att.net writes:
<< Lynn,
A rough sketch would help my minds eye visualize all the parts of such a scale !! The pivot point for the bar is not clear to me....
Thanks
--
Kelly Troyer Dyke Delta/13B/RD1C/EC2 >>

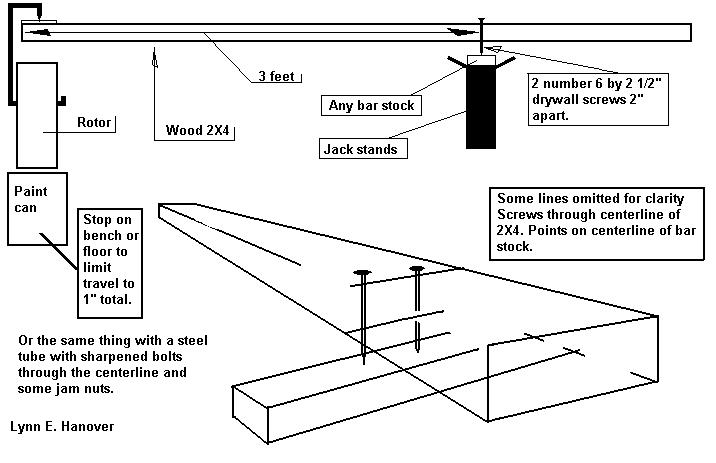

There is a sharpened bolt or screw on each side of the balance bar to keep it from rocking. The point of the hangers is higher than the pivot point, so the scale is very sensitive, like a tail heavy plane. As you can see, when the balance bar starts to move one way, it starts adding in a bit of mass from the bar as it passes over the pivot point. The pivot bar can be anything strong and long enough to span between the two jack stands. Or cement blocks, or whatever. Limit the travel of the pieces to just a bit. One inch is plenty. Start the setup with a level to get the same travel on both sides.
Lynn E. Hanover
|
|
