On Tuesday, January 18, 2005, at 12:51 PM, Jerry Hey wrote:
Tracy, would it be possible to eliminate two of the injectors using the EC-2? I appreciate the limp home value of having a second set of injectors but most aviation engines do operate with just one injector per cylinder I think. Two injectors really complicate the p port fuel rail if the injectors are firing into the bells as I am doing. I know you supply the EC 2 for the Suburu. Does it also have two injectors per cylinder? Anyway, here is a drawing of the fuel rail using two injectors. With only one injector, it would be a straight tube. Thanks Jerry
<fuel rail layout angled i.JPG> Homepage: http://www.flyrotary.com/
Archive: http://lancaironline.net/lists/flyrotary/List.html

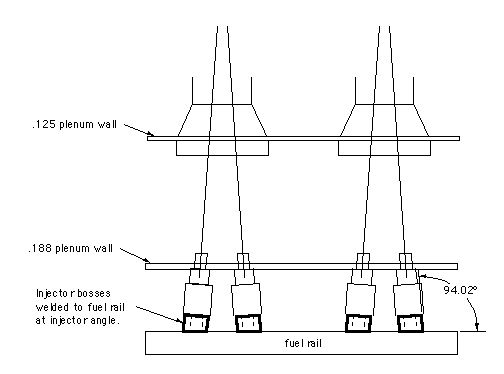

Replying to my own e-mail- after I posted the drawing, I continued to mess with the design and came up with a solution which is simply to angle the injector bosses and leave the fuel rail straight. This will allow me to use both injectors. The revised drawing is attached. Onward, Jerry
fuel rail layout angled i.JPG
|
|
