Paul -
Yes, David had/has a heat shield under his intake manifold. I have a

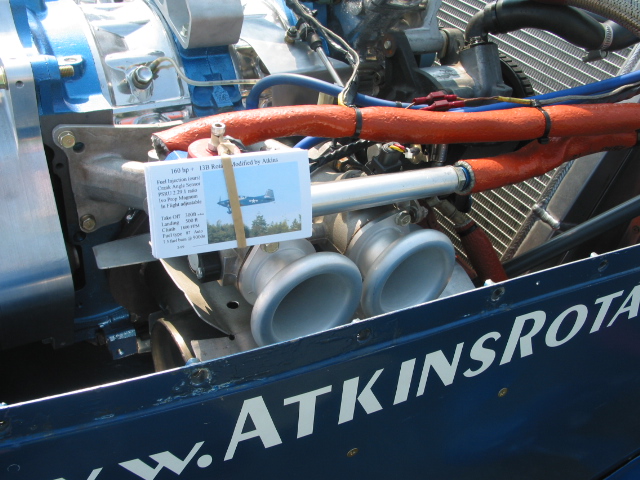

bunch of pictures - just not with me at work.  The only two
semi-relevant pics I have on my laptop here are from his old setup. He
changed his engine installation last Spring/Summer and had the new
setup at Oshkosh.  The attached pics don't directly show his heat
shield - but you can see it through the manifold on one and it's in
the lower left on the other one.

If David isn't able to get pics of his new install to you I'll see if
I've got any at home from Osh-2004.

Thanx,
Joe Hull
Bellevue (Seattle), Washington
Cozy MkIV #991 (working on Engine & Electrical & Finishing)
http://www.maddyhome.com/canardpages/pages/JoeHull/index.html
