Pat,
Here are some photos of jacks that Wolfgang put together for me.

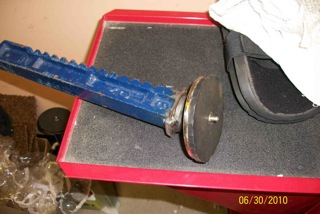

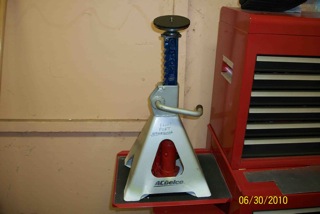

The stands are made from standard jack stands. The jacks are mounted, on the bottom, to steel that was welded to the stands. On top is welded a roller bearing with 1/2" Phenolic block and 1/2" rubber. In the center at the top is a cut off 1/4" bold that slips into the wing.
2 60 lb sandbags are used to hold the tail down on a saw horse covered with a blanket.
If you have any questions, feel free to call or eMail.
Lorn
> From: PatHABU@aol.com
> Date: June 22, 2010 10:05:07 PM EDT
>
> Anyone found an easy way to jack a LN2 so as to do gear retraction tests?
--
Lorn H. 'Feathers' Olsen, MAA, ASMEL, ASES, Comm, Inst
DynaComm, Corp., 248-345-0500, mailto:lorn@dynacomm.us
LNC2, FB90/92, O-320-D1F, 1,700 hrs, N31161, Y47, SE Michigan
|
|
