Jack,

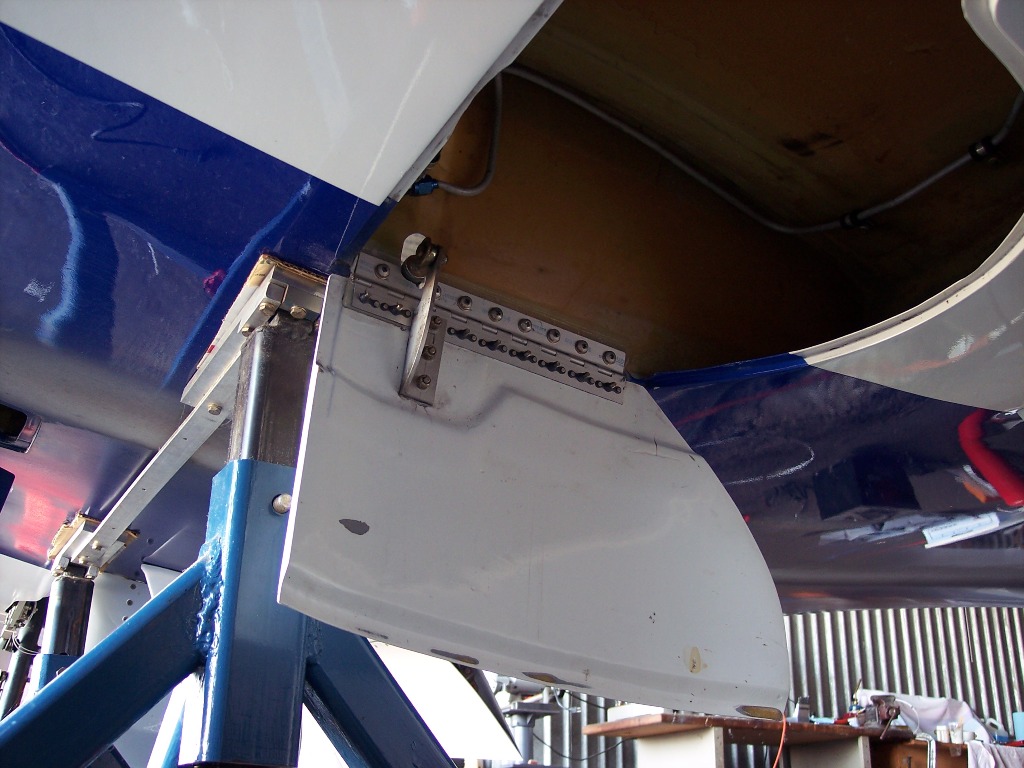

If you extend the hinge line all the way forward to the leading edge of the door when you change out the hinge, it will stop the premature wear. The attached photo shows this mod with the original door installed. It will not stop all the 'shaking in the breeze' as seen in the video link, but will help save the hinge. The moment arm for the actuator is still too small for the size of the door.
Rod end bearings come in different flavors. This goes for all the spherical bearings as well, If you upgrade to a better alloy, it will prevent the play from developing. The load rating will seem excessive, but you will never have to replace the bearing for the life of the plane. Tolerances will remain much better. You can download the Aurora catalog, for example, and see how different series have different load ratings for the same dimensions. You'll need to go to a bearing place like Motion Industries to get these.
Chris Zavatson
N91CZ
360std
From: JON ADDISON <jraddison@msn.com>
To: lml@lancaironline.net
Sent: Thu, March 3, 2011 12:37:46 PM
Subject: [LML] Lancair 360 Inner Doors
Lancair 360 Inner Doors... again...
I have the larger inner doors and they vibrtate badly. (Someday I'll try to get the 3 piece carbon fiber doors)
But for now: I'm in the process of changing the worn hindge to an extruded aluminum hindge with an "over size" 3/32 " (.095 ") stainless steel welding rod.
Plus replacing worn rod-end bearing. (New from Lancair this morning)
Considering remaking the attach channel that connects the rod end bearing and actuator to the door. ie making it twice as long as the origional.
Wondering if the attach point under the seat needs to be make tighter with possibly metal sleeves after drilling out the attach bracket on flloor.
Also, considering making a tiny spoiler 1/8 " or so high and temp mounting on aft / lower edge of door to stabalize it (and probably loose a knot).
Opinions and fixes that
worked?? (Except the carbon doors which I can't afford yet.)
And also does anyone know if the inner door actrator can be rebuilt... both or mine leak a bit.
Jack Addison
N360JS Sisters, Oregon
