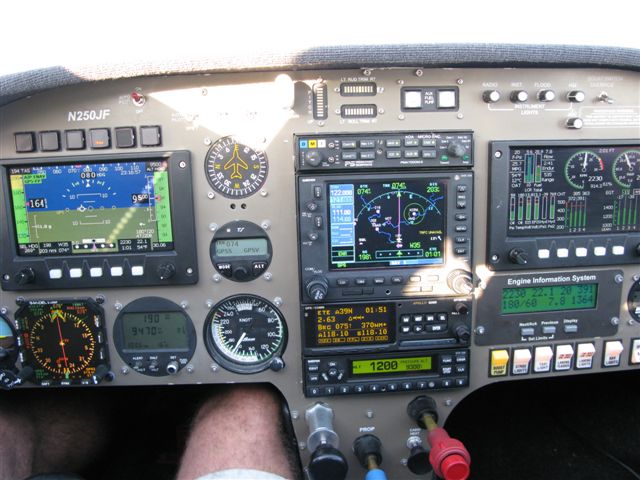

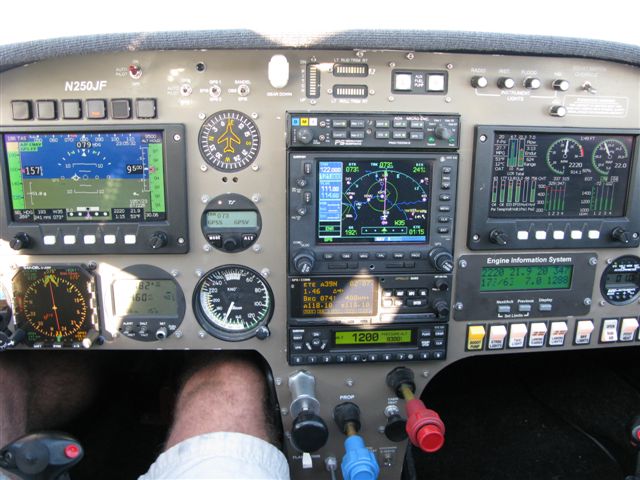

1. Attached are two pictures from a flight yesterday operating LOP in my 360 (engine specs and notes below).
2. My 360 will be for sale as I hope to be flying my Legacy in a few months. (link below). Contact me OFF LIST at bakercdb@gmail.com
3. I have some New, unused Legacy parts for sale (see below)
(1.) LOP Test
10F LOP vs Max LOP before roughness (78F LOP): Comparison (9,500msl, 2,230 / 22.1, 12C OAT)
TAS: 194 vs 186 kts (-4%) GPH: 7.8 vs 7.0 gph (-10%) CHT: 391 vs 347 (max)
Endur: 2:41 vs 3:13 hrs:min Range: 535 vs 624 (+17%)
(hi res panel photos of the two configurations at link above)
Notes: -360 with 9/1 pistons, LSE III (single), Airflow Performance fuel injection, ECI Cold Air Sump, custom built 4 into 1 exhaust from aircraftexhaust.net.
- The fuel nozzles were tuned (AFP makes various sized nozzles) making multiple flights to achieve a GPH spread of 0.1 to 0.3 gph (depending on configuration, etc).
- The ECI cold air sump/4 into 1 exhaust noticeably improved fuel distribuition vs the stock sump/exhaust and allows LOP operations of up to almost 100F LOP in some configurations. With ram air ON, I can't go as far LOP and the gph spread is on the wider half of the 0.1 to 0.3 gph spread. (I would guess that the sump was the bulk of the improvement. Power change was not that significant).
- I now operate almost exclusively LOP as it Dramatically extends range vs ROP, with only a small speed loss.
(3) Legacy- NEW parts for sale (contact me OFF LIST)
- main wheels/brakes/tires & nose wheel
-carbon cowling
-baffle kit with silicone seal. Includes all precut pieces and silicon seals. New and undrilled, with only some minor scuff marks. (does NOT include the mostof the small brackets or bolts/nuts)
-carbon fiber factory rear tunnel (baggage compartment elevator pushrod cover).
All new and at a significant discount to list prices (I haven't looked them up yet)
Regards, Clark Baker
|
