Posted for "Douglas Brunner" <douglasbrunner@earthlink.net>:

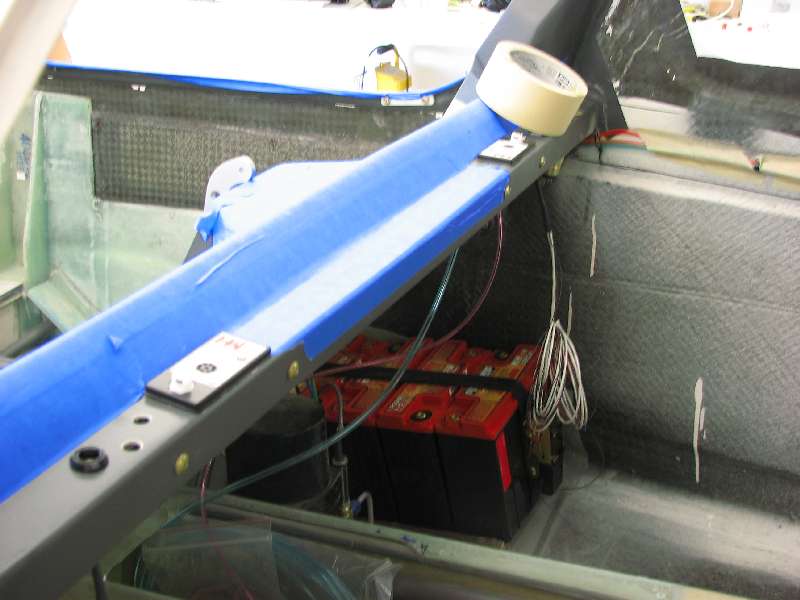

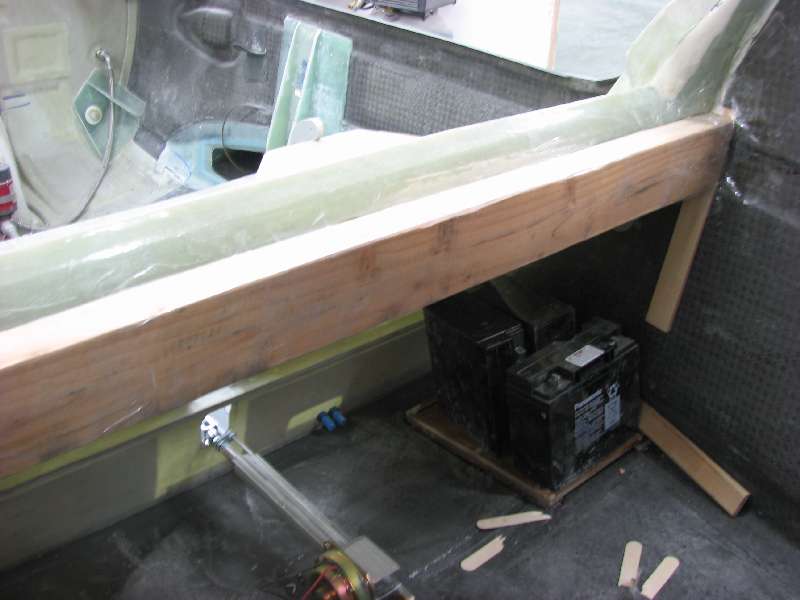

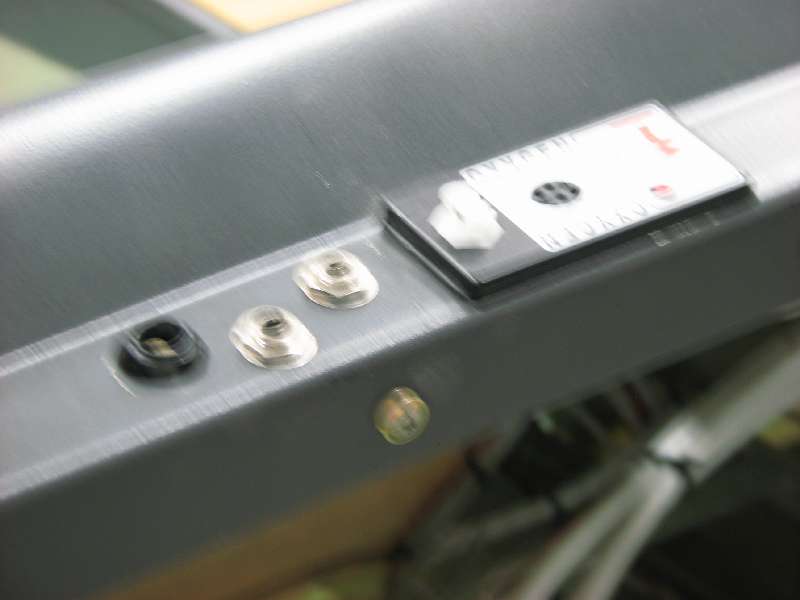

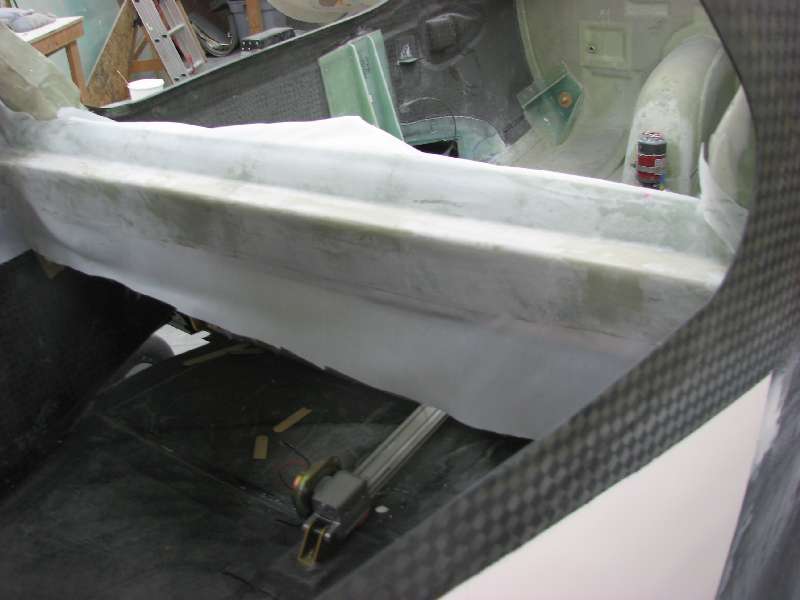

> I located my headset jacks and O2 outlet on the seatback. I extended the
>seatback by a couple of inches (seat back release 1 & 2) and drilled for
>jacks and O2 outlets (mike jacks and O2 1 & 2). (Forgive my amateurish
>photography.)
>
> A key part of this idea was that the pilots mike jacks and O2 would be on
>the co-pilot side and vice versa. Hopefully if any adjustments are needed in
>flight or after I am in the cockpit, it will be easier to reach over to my
>side than behind me and above. Also this shortens and simplifies the wiring.
>
> In addition, I located the hydraulic dump on the seatback rather than next
>to the pilots leg. Since my hydraulic pump lives behind the co-pilot seat
>this shortens and simplifies the hydraulic lines.
>
> D. Brunner
> ----- Original Message -----
> From: Bill Bradburry
> To: lml@lancaironline.net
> Sent: Thursday, November 01, 2007 6:29 PM
> Subject: [LML] Legacy Headset Jack Location
>
>
> I have the overhead console in my Legacy. I am considering trying to put
>the headset and mike jacks up there. It will be a pretty tight fit. Has
>anyone else done this? How did you route your wires? Where have some of you
>located your jacks in the Legacy? I am open for suggestions.
>
>
>
> Thanks for all your help.
>
>
>
> Bill B
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
