Mailing List flyrotary@lancaironline.net Message #53941
From: Steven W. Boese <SBoese@uwyo.edu>
Subject: TDC
Date: Thu, 24 Feb 2011 09:28:05 -0700
To: Rotary motors in aircraft <flyrotary@lancaironline.net>

Chris,

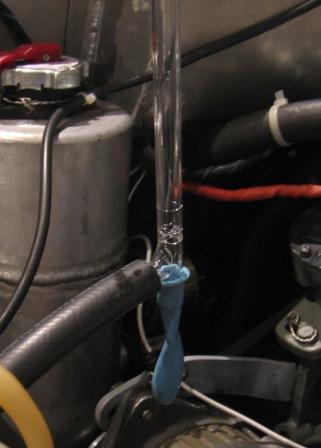

The attached photo shows a device that makes it easy to determine the location of the minimum combustion chamber volume (TDC) within a degree independently of any existing front pulley or flywheel markings.  Connect it to a spark plug location and just rotate the eccentric shaft to the point where the soap bubble in the clear tube is the highest.  It might be worth a try.  I made up a number of these to give away at the Paducha fly in last summer.  The lack of interest was surprising since I couldn’t even give them away.



Steve
