Attached is the pics of the flowmeter and series EWP
installation.

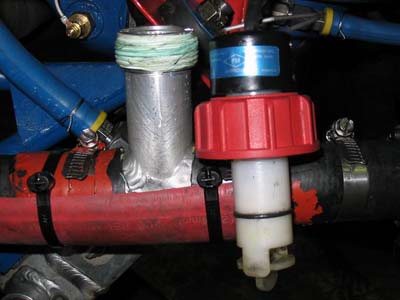

On the flowmeter pic, the top threaded portion has
Teflon tape. This is not for sealing purposes. I just put it on to get a tighter
thread fit, however it was not necessary & I forgot to remove before taking
the picture. It is sealed by 2 O-rings (one visible, the other under the cap).
The red hose ty-wrapped to it is there to prevent wear from rubbing against the
oil cooler and red silicon was used previously to hold hose sleeve in place in
previous configuration (hard to scrape it off). Red silicon dabs are also used
on screw claps to lock them.

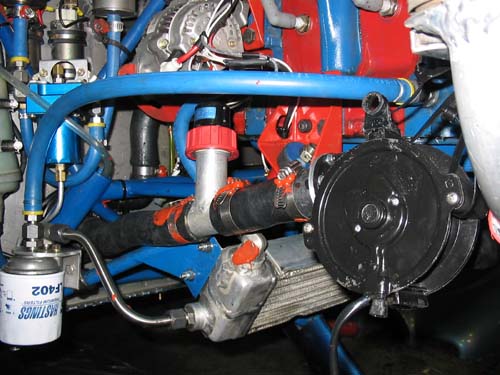

On the series pic, the primary EWP remains mounted to the
FW, while the secondary EWP is seen in the foreground. It is supported by 2
straps hanging it from the rad mount. This is by no means preferred, but due to
space and plumbing considerations, I really didn't have much
option.
|
